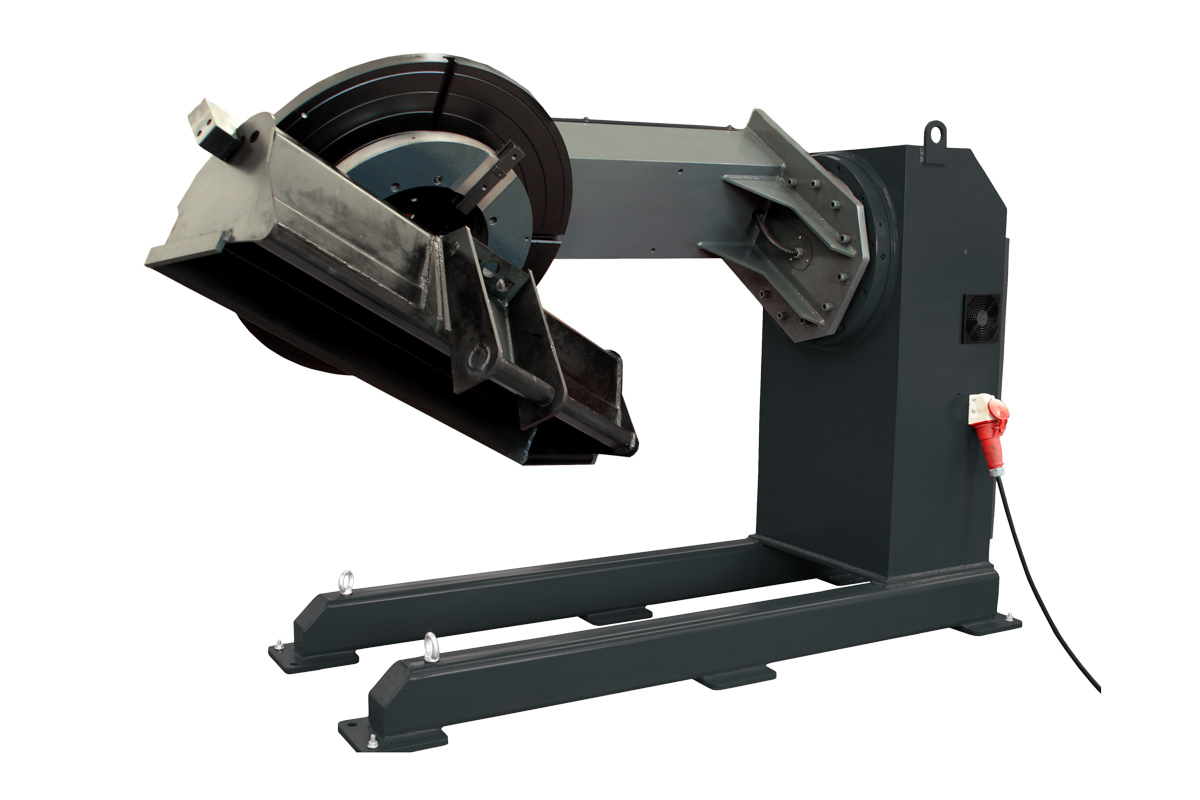

Welding Positioner 360° tilting D-TLP-L

Positioners L-type with bore for 360° rotation and welding of workpieces from 500 kg - 5 t.

Product Features

capacity 500 kg - 5 t
L-type with orifice
360° turn
infinitely adjustable rotation speed
including double foot pedal
incl. remote control (on cable)

Data sheet Request a quote

Technical data

Model	05	010	030	050
Max. load (kg)	500	1.000	3.000	5.000
Table (Ømm)	700	900	1.150	1.150
Passage (Ømm)	100	100	100	100
Rotation speed (rpm)	1	1	0,5	0,5
Max. distance center of gravity (mm)	400	400	300	300
Max. eccentricity (mm)	200	200	200	200
Max torque table (Nm)	1.000	2.000	6.000	10.000
Max torque tilt (Nm)	1.250	2.500	9.000	15.000
Motor power rotation (kW)	0,37	0,75	1,1	2,2
Motor power tilt (kW)	0,37	1,1	2,2	3
Max. welding current (A)	500	500	750	750
Mains connection	400V, 50/60Hz	400V, 50/60Hz	400V, 50/60Hz	400V, 50/60Hz
A (mm)	800	1.000	1.400	1.500
B (mm)	1.000	1.100	1.220	1.220
C (Ømm)	100	100	100	100
D(Ømm)	700	900	1.150	1.150
E (mm)	1.030	1.230	1.815	1.915
F (mm)	1.825	2.125	3.035	3.035
Dual Foot pedal (start-stop/left-right)	Includes	Includes	Includes	Includes
Remote control (to cable)	Includes	Includes	Includes	Includes

All information (technical data, product colors, etc.) is subject to errors and changes.

Other information

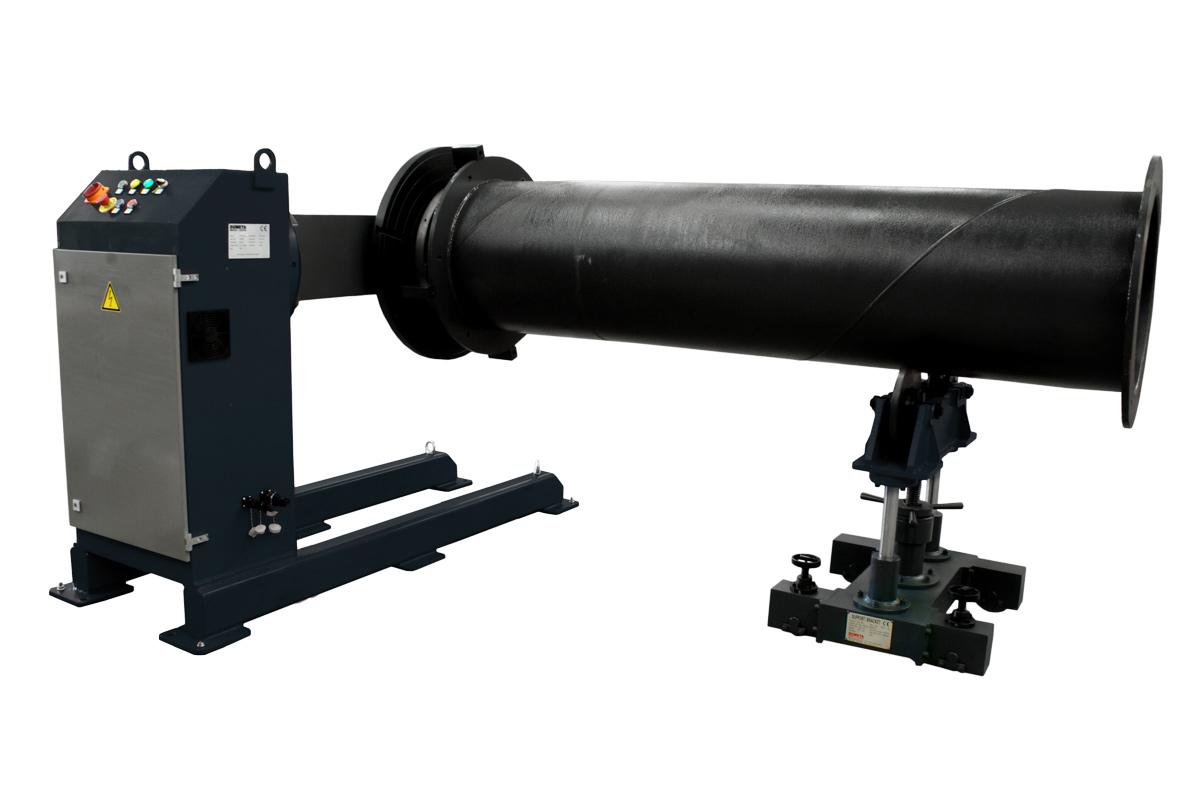

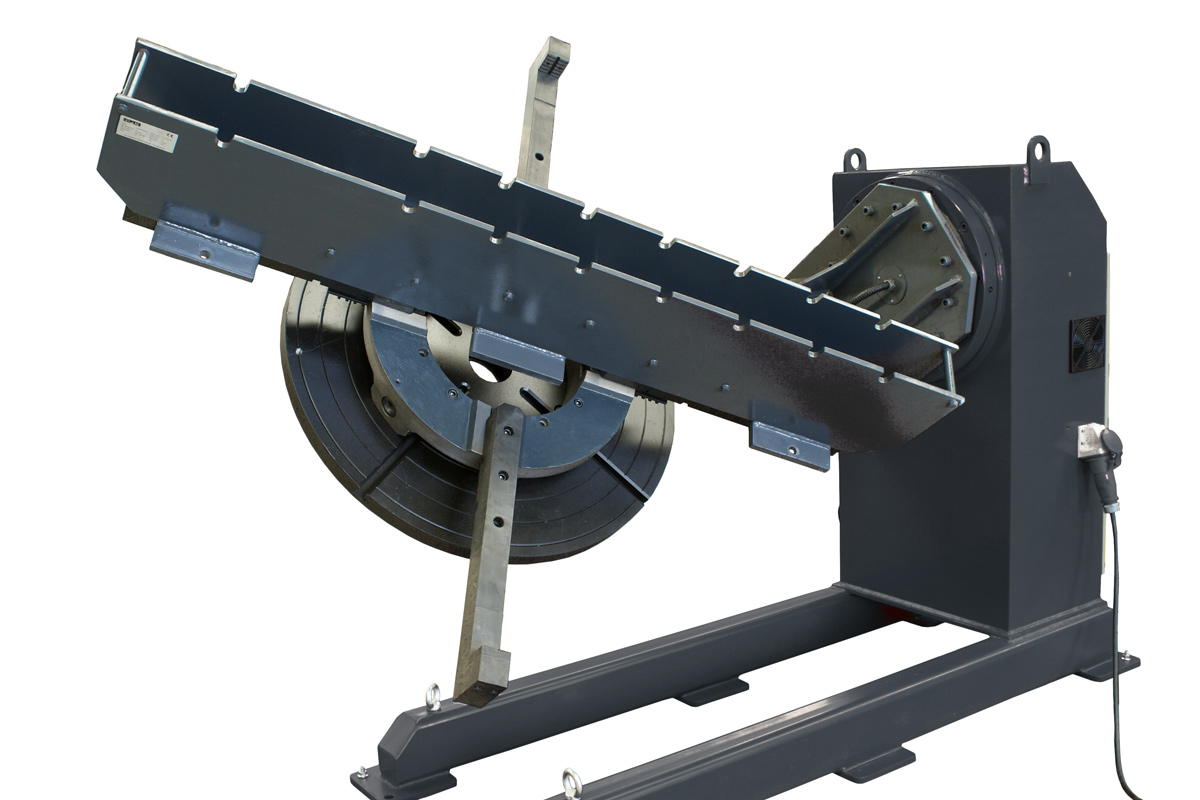

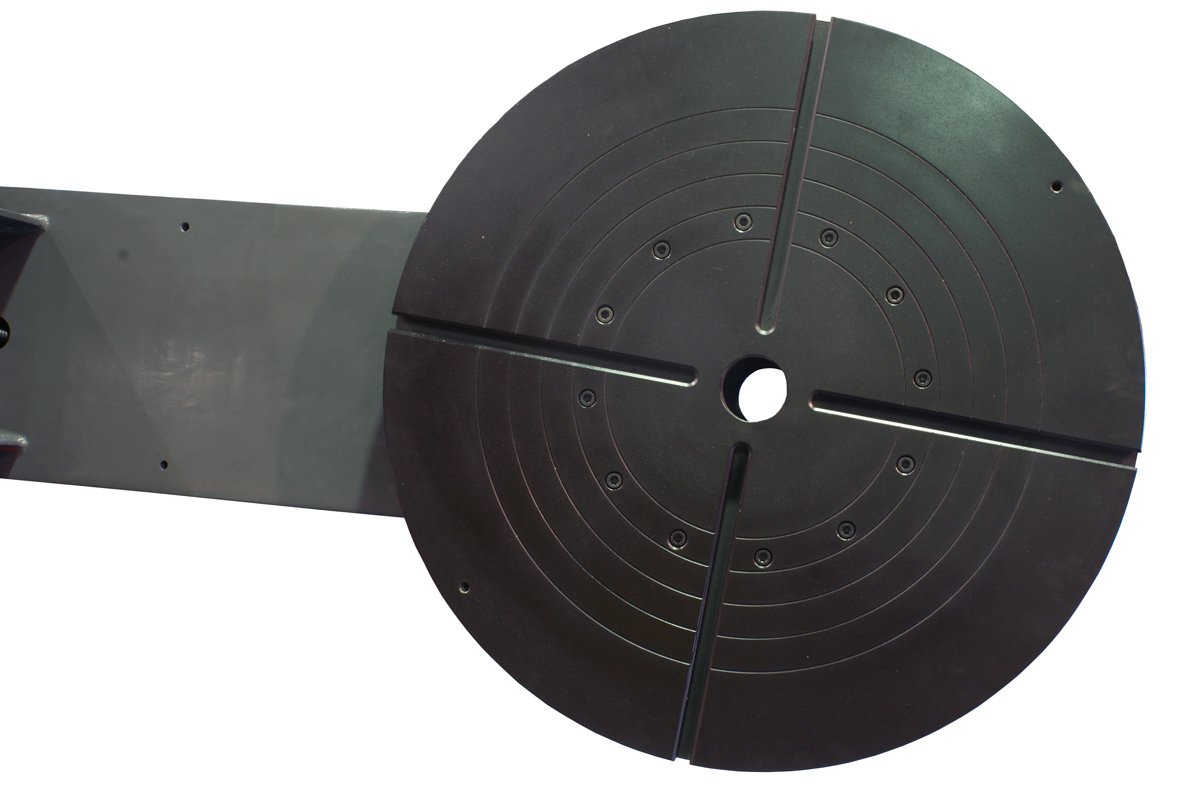

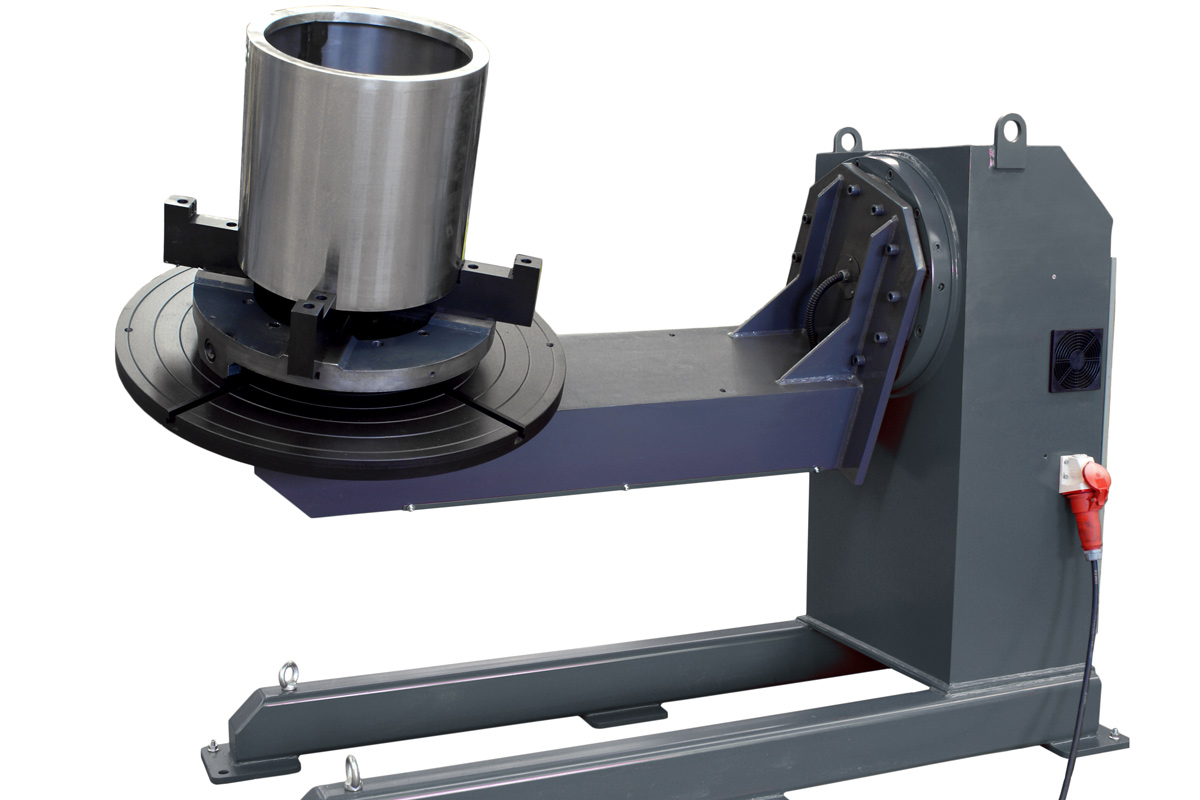

With this positioner , you are even able to tilt the workpiece 360°, or completely upside down. This offers even more possibilities for your most ideal welding position and rotation at the desired speed. The welding manipulator is equipped with a pass-through and available as standard with a max load capacity of 300 kg to 5,000 kg. You are able to tilt the workpiece 360°. This can provide even more options for your most ideal welding position. Clamping workpieces is easy with a chuck on the clamping table of this 360° welding rotary table. Position your workpiece in the most ideal position or rotate your workpiece at your desired speed. With this machine, you are even able to tilt the workpiece 360° - or completely upside down. This offers even more options for your most ideal welding position.
D-DWP-L positioners are available as standard versions from 300 kg capacity up to 5 t. Of course, a positioner can also be designed and built to your own requirements.
